Installation of Exchange 2013

Note : The below installation is same for Windows 2008, Windows 2012)

IMP : From windows 2008 r2, Exchange 2013 SP1 is SUPPORTED below versions of Exchange 2013 are NOT

SUPPORTED

Prerequisites please follow the below link

http://technet.microsoft.com/en-us/library/bb691354(EXCHG.150).aspx

Step 1:

To Prepare Active Directory

Install the Below Feature

Open Windows PowerShell.

Install-WindowsFeature RSAT-ADDS

Step 2:

Open Windows PowerShell

Run

Import-Module ServerManager

Next Command to install Prerequisites:

Install-WindowsFeature AS-HTTP-Activation, Desktop-Experience, NET-Framework-45-Features, RPC-over-HTTP-proxy, RSAT-Clustering, RSAT-Clustering-CmdInterface, Web-Mgmt-Console, WAS-Process-Model, Web-Asp-Net45, Web-Basic-Auth, Web-Client-Auth, Web-Digest-Auth, Web-Dir-Browsing, Web-Dyn-Compression, Web-Http-Errors, Web-Http-Logging, Web-Http-Redirect, Web-Http-Tracing, Web-ISAPI-Ext, Web-ISAPI-Filter, Web-Lgcy-Mgmt-Console, Web-Metabase, Web-Mgmt-Console, Web-Mgmt-Service, Web-Net-Ext45, Web-Request-Monitor, Web-Server, Web-Stat-Compression, Web-Static-Content, Web-Windows-Auth, Web-WMI, Windows-Identity-Foundation

# Run Restart-Computer to Reboot the Server

 Note :

For single Role. Prerequisite command differs .

Refer below link for Prerequisites

http://technet.microsoft.com/en-us/library/bb691354(EXCHG.150).aspx

Step 3:

Now Download and install the Prerequisites

1. Microsoft Unified Communications Managed API 4.0, Core Runtime 64-bit

2. Microsoft Office 2010 Filter Pack 64 bit

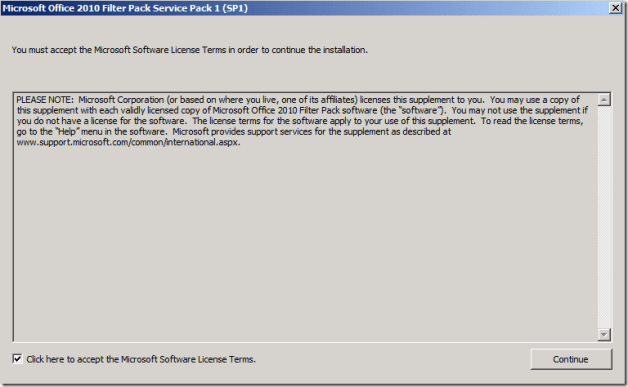

3. Microsoft Office 2010 Filter Pack SP1 64 bit

Step 4:

Because we installed a lot of components it is a good idea to check Windows update again for updates. In my case the only available update is for the Internet explorer flash player.

Now we can in install Exchange 2013. I used the following command line:

Setup.exe /role:ClientAccess,Mailbox /IAcceptExchangeServerLicenseTerms

New for this is the /IAcceptExchangeServerLicenseTerms parameter, you need to add this otherwise the installation stops with a message for you that need to accept the license.

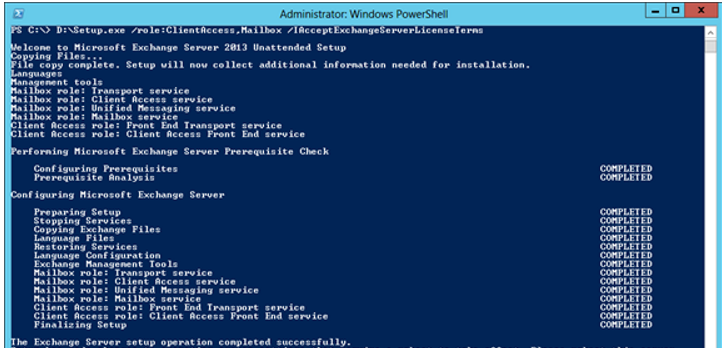

The installation starts and you can see the progress during the setup process.

If everything is correct you will get an overview like above.

A final reboot is required, and our second Exchange server is ready for use.

Verification : Check if you are able to open Exchange Admin Center.

For More Info :

http://technet.microsoft.com/en-in/library/aa997281(v=exchg.150).aspx

Praveen Kumar

MCTS | Exchange Server

Publisher of Techrid.com
